4) olixCore™ EdgeIO

Overview​ #

olive™ EdgeIO is a robotics optimized System on Module (SOM) that weighs only 5 grams, is capable of running both ROS and ROS 2 simultaneously and is the key to building high-performance, industry-leading software-defined robot hardware components.

Key features​ #

• 5 grams
• 32 mm x 32 mm footprint
• ROS and ROS 2-support
• Debian-based. Production-grade software stack and OS included

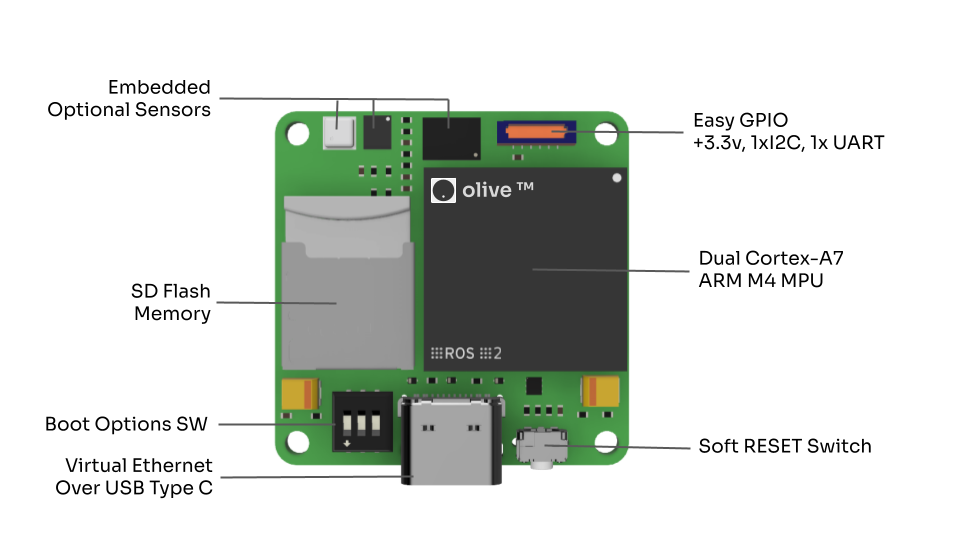

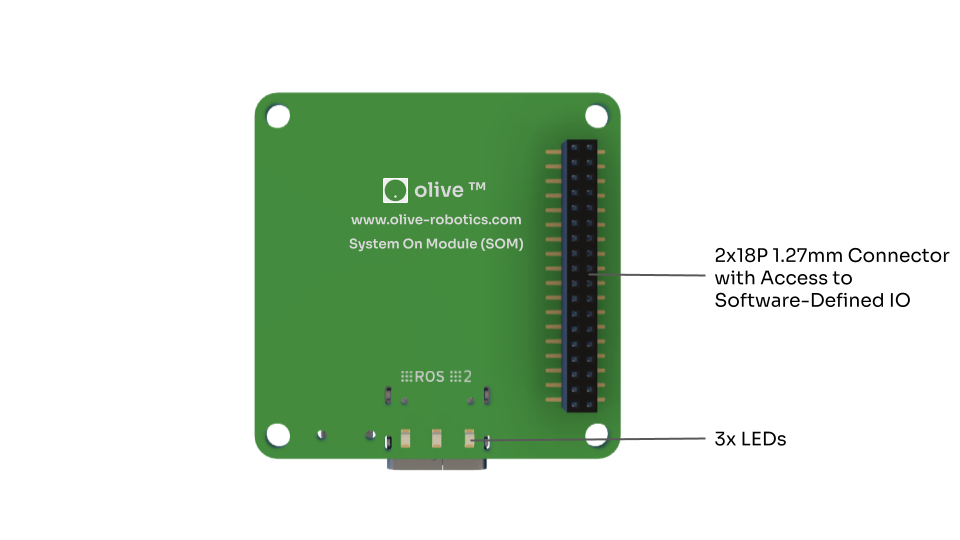

Components​ #

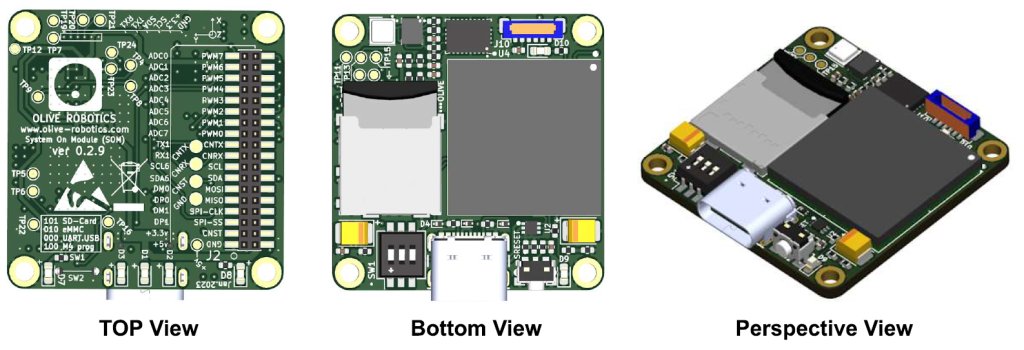

Layout​ #

Technical Specification​ #

TECH SPECS	DETAILS
FORM FACTOR
Dimensions	32mm x 32mm x 4mm
Weight	5 grams
PROCESSOR UNIT
Application Processor	Dual Cortex-A7 up to 800 MHz
Real-Time Processor	Cortex-M4 MPU up to 200 MHz
MEMORY
On Chip (SoC)	512 MB RAM
On Chip EEPROM (SoC)	512 Bytes x 8
On SOM	Up to 512 GByte SD Flash
CONNECTIVITY
High-Speed Connectivity	1x Virtual Ethernet over USB-C (up to 0.5 Gbps)
Other I/O	1x USB 2.0 Host, 2x UART, 2x I2C, 1x SPI, 8x ADC, 8x PWM
SOFTWARE
Yocto BSP available for batch purchases	Linux Kernel – Linux 5.10
Operating System	Debian 11
Communication middleware	eProsima Fast DDS and Apache Cyclone DDS
Robotic Operating Systems	ROS Noetic Ninjemys, ROS 2 Humble Hawksbill
POWER AND THERMAL
Power Consumption	<1W (1.5 W max)
Voltage	Single 5.0v
Max Current	300mA
Temperature Range	Commercial 0°C to 85°C / Industrial -40°C to +85°C

Versions​ #

Feature	OLVX EIO-U01X08P-A	OLVX EIO-U01X08P-C
ADC input	8x (Max Input Voltage 3.3V)	3x (Max Input Voltage 3.3V)
PWM output	8x (Max IO Voltage 3.3V)	8x (Max IO Voltage 3.3V)
Serial	1x (Max Speed 3Mbps)	1x (Max Speed 3Mbps)
I2C	2x (Max Speed 1MHz)	2x (Max Speed 1MHz)
SPI	1x (Max Speed 5MHz)	1x (Max Speed 5MHz)
USB	1x USB 2.0	1x USB
CAN	Not available	1x (Max Speed 5Mbps)

Hardware Quick Setup​ #

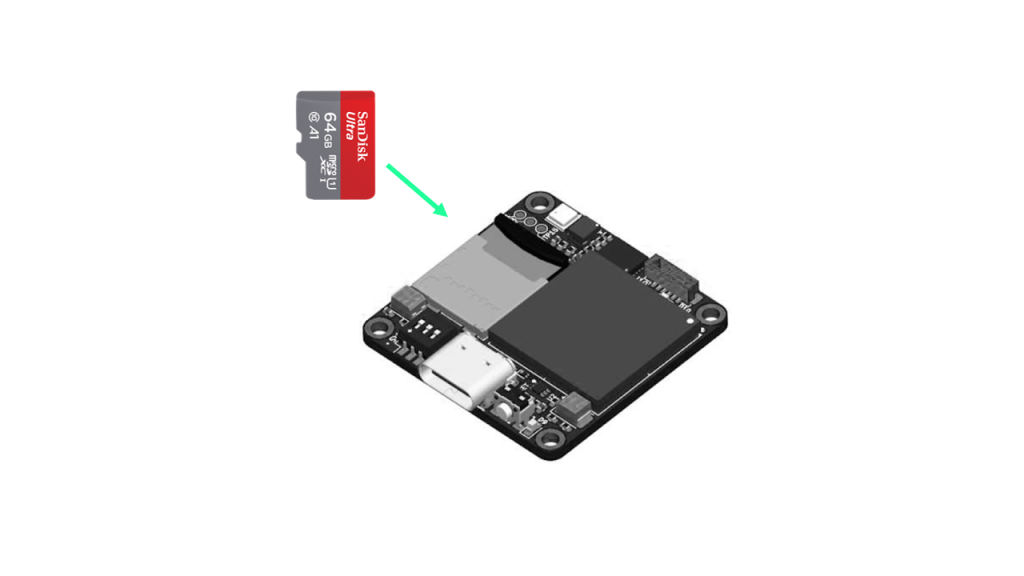

SD card​ #

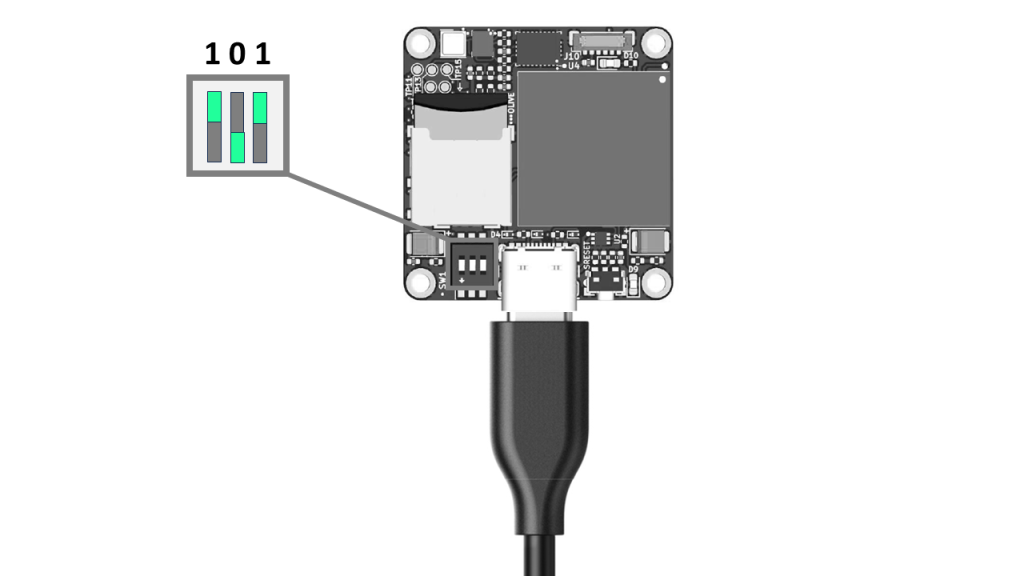

Locate the 3-pos DIP switch on the SOM module. Before proceeding, it must be set to the 101 position. This configuration allows the SOM to boot from the SD card. Ensure the SD card is properly seated and secured.

Connect the SOM with a USB-C cable to your computer.

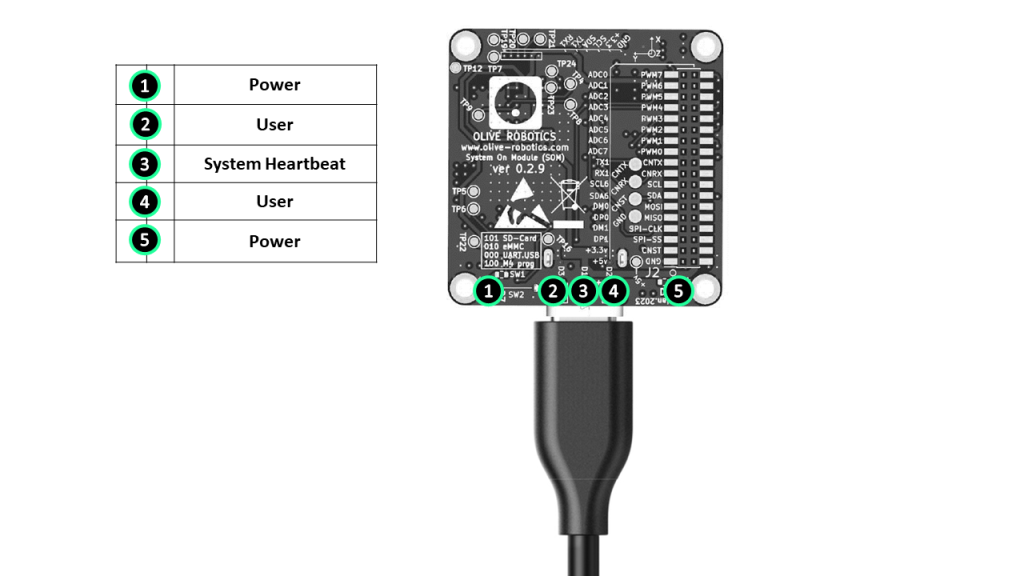

LEDs​ #

Your System-on-Module (SOM) is equipped with five LEDs, designed to provide critical information about the system’s status.

The two LEDs located on the sides are voltage indicators, which remain lit to signal the availability of power to the system. They provide assurance that the system is receiving adequate power supply.

Centrally located are three more LEDs, serving as the software status of the system.

The middlemost LED acts as the heartbeat of your system. Think of it as a health check; when it’s flashing, you can be sure your system is alive and well.

Flanking this heart-beat LED on the sides are two user-related status indicators. You can control them according to your application.

These five LEDs, working together, ensure you always have a clear picture of your SOM’s status and health.

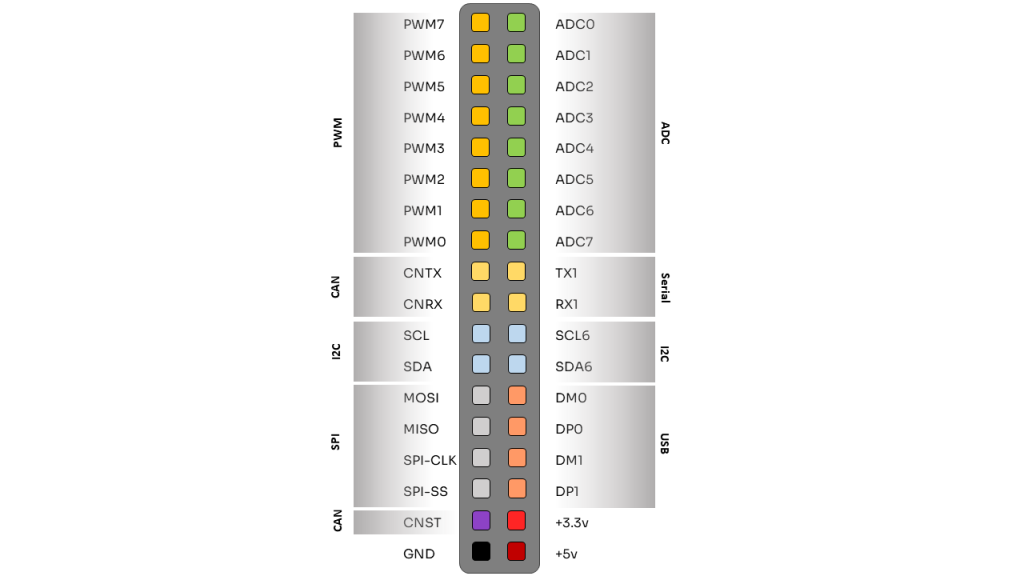

Pin Description​ #

Scan for I2C sensors​ #

sudo i2c detect -y 1

1 is the first IMU sensor

0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
00:                         -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- 28 -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --

sudo i2c detect -y 2

2 is the second IMU sensor

0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
00:                         -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- 68 -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --

sudo i2c detect -y 3

3 is the Power Managment System + EEPROM + Barometer

0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
00:                         -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- UU -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: UU -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- 76 --

USB Connection check​ #

on you main computer try

ls usb

you should see the device in your USB connected device list as follows:

Bus 001 Device 010: ID 1d6b:0104 Linux Foundation Multifunction Composite Gadget

GPIO Scan​ #

You can use this command to do GPIO Scan

sudo gpioinfo

gpiochip3 line 10: "led-dcm"  output  active-high [User]
gpiochip8 line 9: "led-heartbeat" output  active-high [Kernel]
gpiochip9 line 7: "led-user"  output  active-high [User]
gpiochip7 line 8: "reset button"  input  active-high [User]

sudo gpiodetect

gpiochip0 [GPIOA] (16 lines)
gpiochip1 [GPIOB] (16 lines)
gpiochip2 [GPIOC] (16 lines)
gpiochip3 [GPIOD] (16 lines)
gpiochip4 [GPIOE] (16 lines)
gpiochip5 [GPIOF] (16 lines)
gpiochip6 [GPIOG] (16 lines)
gpiochip7 [GPIOH] (16 lines)
gpiochip8 [GPIOI] (16 lines)
gpiochip9 [GPIOZ] (16 lines)

 Examples​ #

We have prepared several examples which you can see in our github page:

https://github.com/olive-robotics/olv_som_playground_py

Downloads​ #

Type	Format	Version	Link
3D Models
	STL	1.0	Download
	OBJ	1.0	Download
	DAE	1.0	Download
