Penta-MEMS Redundant | Effortless Plug&Play Solution | ROS 2 Native | Gigabit POE+ Ethernet Interface
– Penta MEMS Redundancy. 3X inertial sensing for unmatched reliability, speed, and accuracy.
– 1000 Hz. Real Time. Ultra-fast raw and fused data for instant control feedback.
– Ultra-Low Latency. Sub-millisecond response for mission-critical robotics.
– Connection Simplicity. Gigabit POE+ Ethernet delivers both power and high-speed data.
– AI Inside. olixAI™ adaptive fusion for precision in any environment.
– ROS 2 Native. Plug-and-play with DDS — no drivers, no delays.
– Built to Scale. Synchronized multi-sensor support for industrial and autonomous systems.
Embedded ROS 2 with DDS protocol
Advanced EKF and AI fusion for unmatched accuracy
Real-time synchronization under 1.0 milliseconds
Advanced AI fusion with redundant sensors
Up to 1000 Hz data rate for dynamic applications
High performance at an affordable price
Compact 38 x 38 x 18 mm, only 38g
Reliable, high-speed Ethernet interface

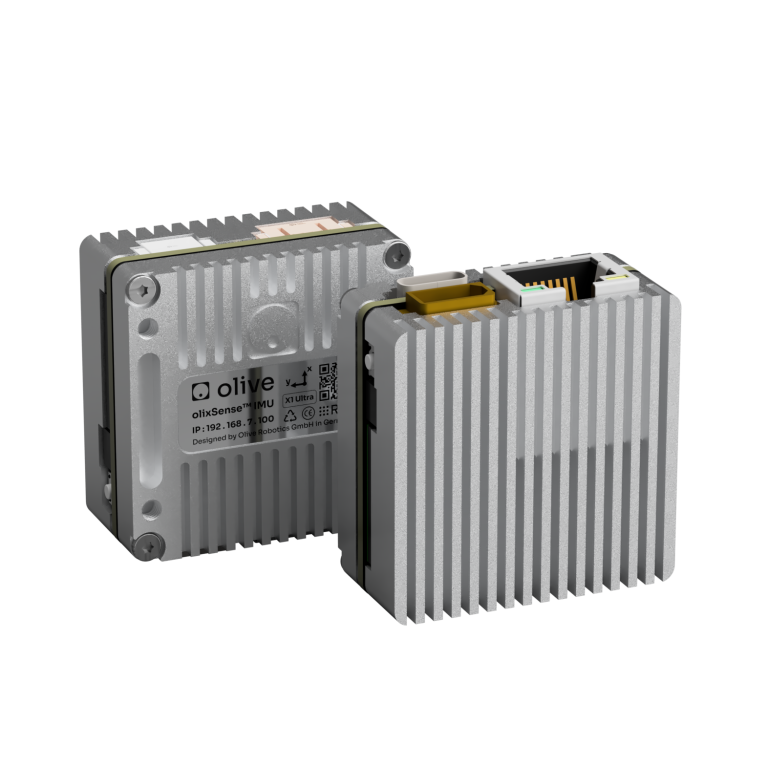

The olixSense™ X1 Ultra delivers consistent orientation and motion data—even in high-dynamic environments—thanks to onboard sensor redundancy and AI-based fusion techniques. This ensures resilient performance in robotics, vehicles, and automation systems.
Fast by Design
With Native ROS 2 / DDS over Ethernet and real-time processing, the X1 Ultra delivers ultra-low-latency motion data at up to 1000 Hz—perfect for dynamic, responsive systems.
Precision You Can Trust
Penta Sensor Fusion blends five sensing MEMS redundancy with embedded AI to ensure accurate orientation, even in noisy or unpredictable environments.
Reliability, Everywhere
From outdoor robotics to factory floors, the X1 Ultra maintains stable performance in GNSS-denied, high-vibration, or harsh conditions.
Intelligence at the Edge
Onboard olixAI™ enables real-time classification, drift correction, and adaptive filtering—right where the data is born with minimum processing latency.
Gigabit Ethernet with PoE+ means data and power flow through a single connection. No drivers. No clutter. Just plug in and go.
Power over Ethernet (PoE+) brings simplicity and performance together — delivering power and high-speed data through a single cable. With built-in Gigabit Ethernet, each Olive sensor becomes a plug-and-play network node, reducing clutter and ensuring stable, low-latency communication for real-time robotics.

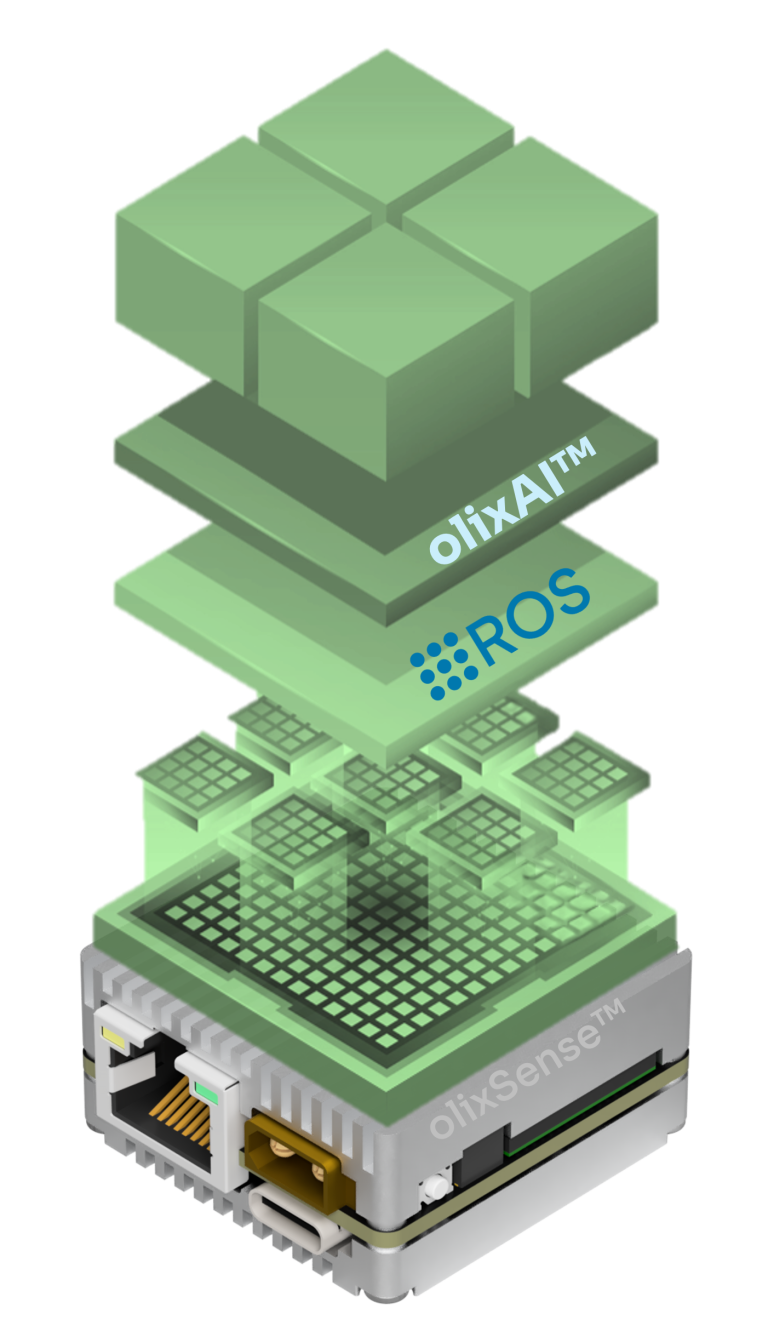

Redundant Sensor Fusion combines five layers of inertial intelligence—accelerometers, gyroscopes, magnetometers, and AI-enhanced logic—to give you rock-solid orientation, no matter the noise, vibration, and temperature change.
Five independent layers of accelerometers, gyroscopes, and magnetometers ensure data integrity even in noisy or high-vibration environments.
Advanced machine learning filters and Extended Kalman algorithms intelligently merge sensor streams for rock-solid orientation and motion tracking.
Outputs fully fused orientation data in native ROS messages — ready for real-time control, navigation, and mapping.
Adaptive compensation maintains accuracy across extreme temperatures, shocks, and rapid motion changes.
The olixSense™ X1 Ultra stands at the forefront of inertial measurement technology. With redundant 3-axis accelerometers and gyroscopes, plus a high-accuracy magnetometer, it delivers rock-solid roll, pitch, and heading — even in challenging environments.
Its Embedded AI Fusion with Extended Kalman Filtering ensures every data point is optimized, filtered, and ready for mission-critical control loops, SLAM, and navigation.
Open your browser.
Access the built-in Web UI.
Configure the ROS-Network settings. Stream live data. Tune parameters. Update firmware. Instantly.

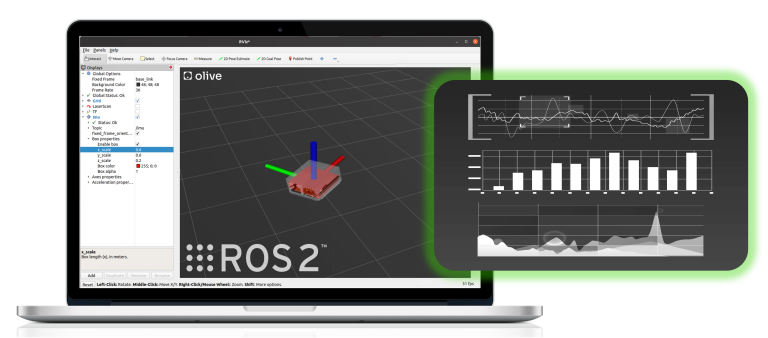

Experience 1KHz ODR with ultra-fast, real-time data streaming in native ROS message format over DDS. Achieve industry-leading performance with less than 1ms latency, ensuring seamless integration for advanced robotics applications.
Penta-redundant 3-axis accelerometers and gyroscopes, plus triple 3-axis magnetometer—delivering high-resolution, low-drift motion data at up to 1000 Hz.

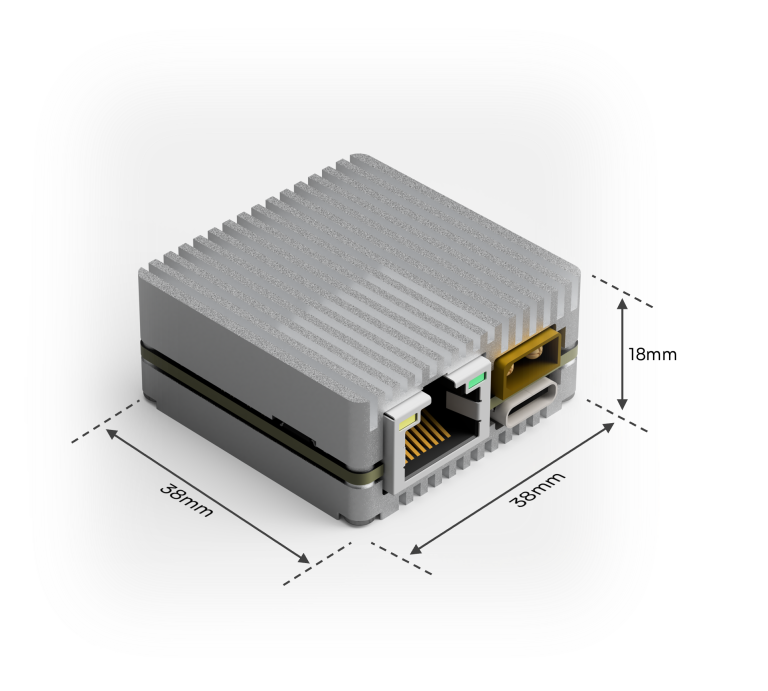

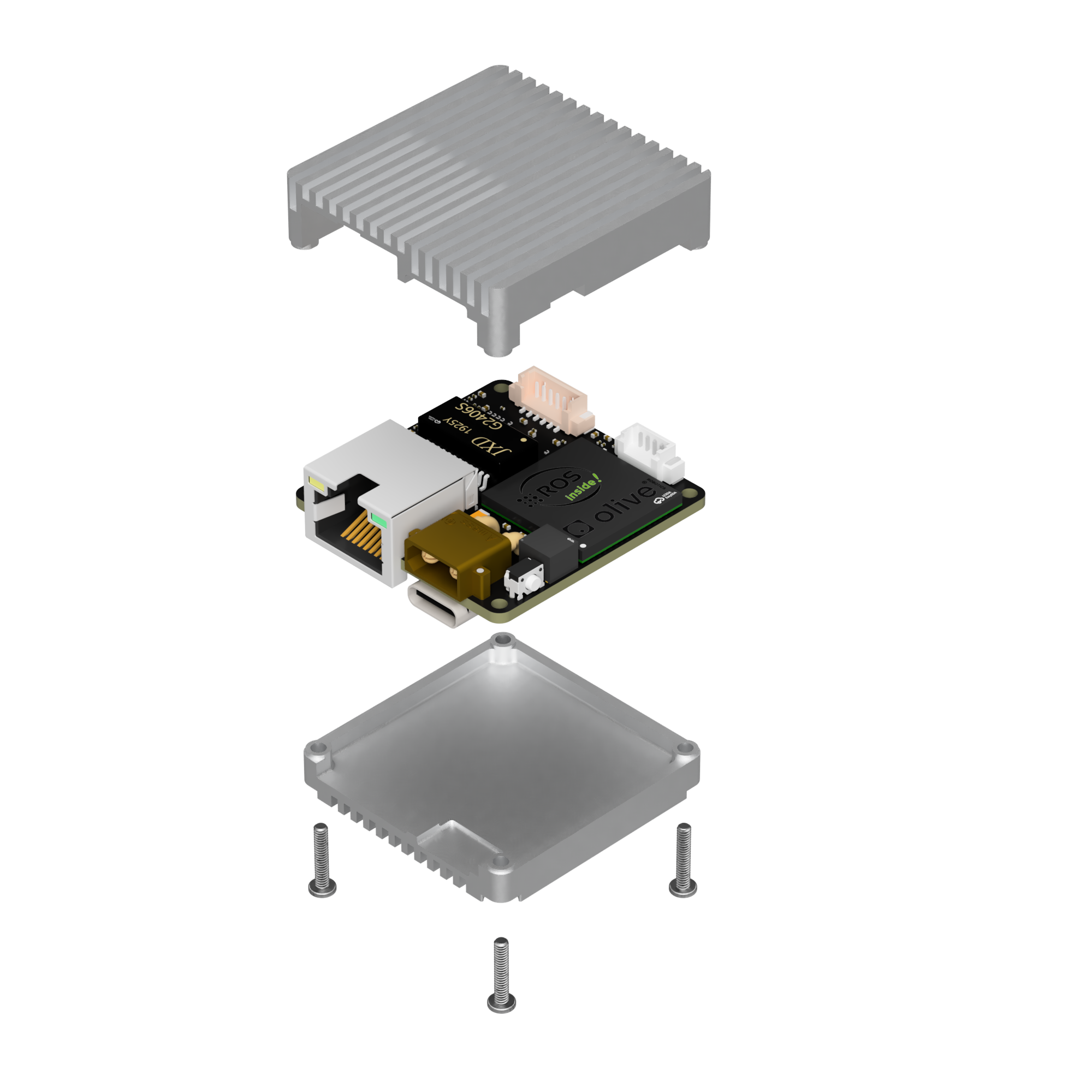

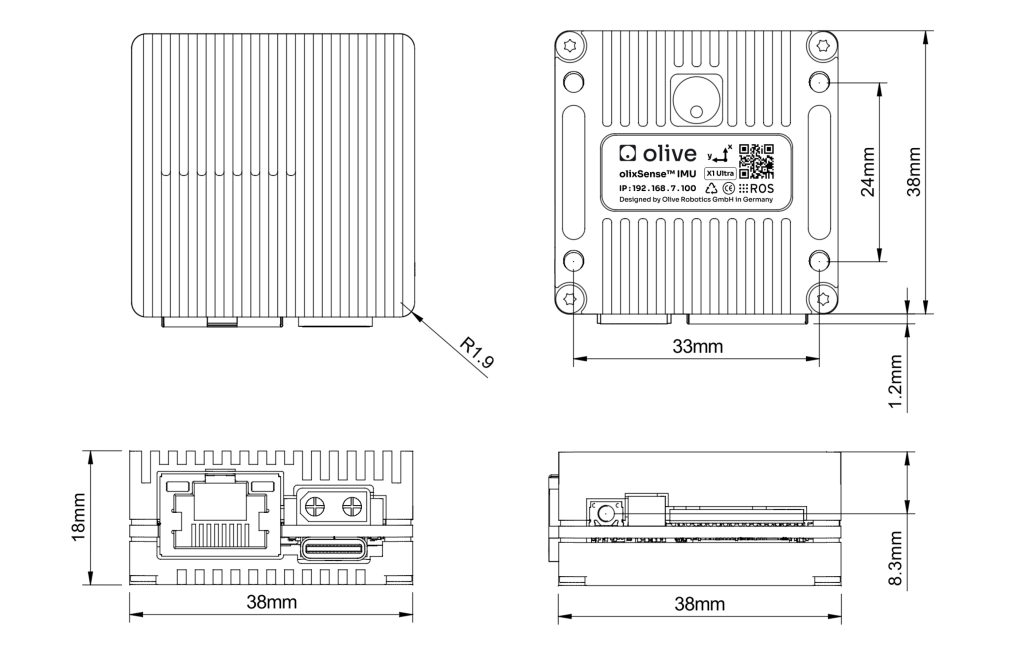

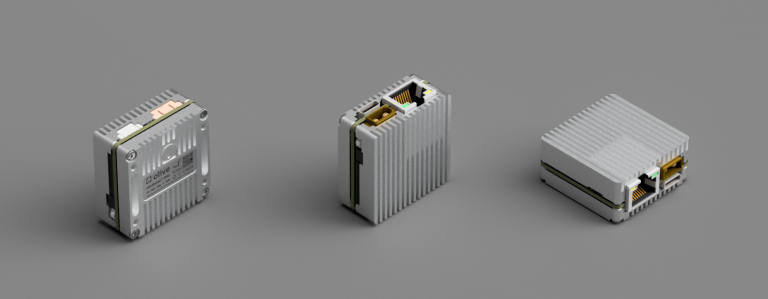

Engineered in a 38 × 38 × 18 mm aluminum housing, and weighing just 42g—ideal for space-constrained, vibration-prone environments.
Real-time Linux kernel with built-in ROS 2 support, Fast DDS/Cyclone DDS middleware, and OTA updates via browser-based WebGUI.

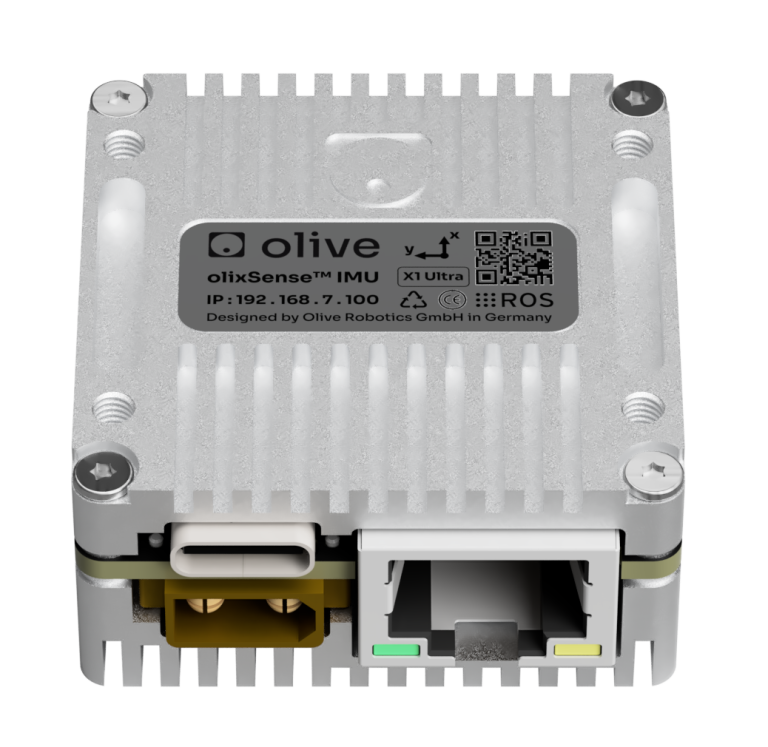

High-speed connectivity (1.0 GBps) with ROS 2 compatibility, onboard LEDs, and reset interface for diagnostics and debugging.

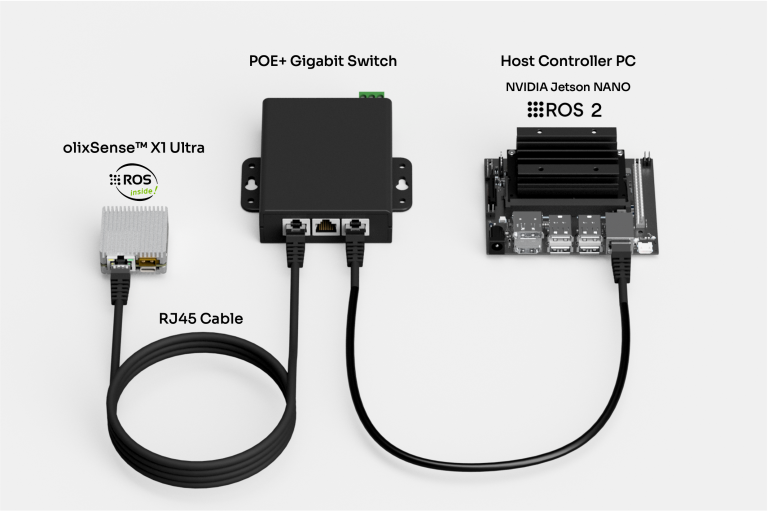

Setting up the olixSense™ IMU is as quick and seamless as it gets, allowing you to access high-quality sensor data within just one minute. Designed with plug-and-play simplicity in mind, the sensor automatically connects to your host PC via an Ethernet interface, eliminating the need for additional drivers. Once connected, the IMU acquires an IP address and begins publishing ROS messages instantly, supporting multiple DDS standards out of the box for versatile integration. Users can configure and monitor the sensor through an intuitive web interface or standard ROS tools such as RQT and rqt_reconfigure. The sensor data can also be visualized effortlessly in RViz, providing real-time insights into its performance. With this streamlined setup process, olixSense™ IMU redefines convenience, making advanced sensor integration faster and more accessible than ever.
The olixSense™ X1 Pro delivers motion intelligence at its purest form. With real-time quaternion output, triple-redundant MEMS fusion, and AI-enhanced filtering, every orientation update is smooth, low-drift, and ready for robotics at scale. From sub-millisecond timestamping to ROS 2-native topic publishing, the X1 Pro turns raw motion into precise, reliable, and application-ready data.
With its ultra-compact dimensions of just 40 x 40 x 10 mm, the olixSense™ IMU X1 Pro is engineered for advanced mobile robotics. Its lightweight yet robust design ensures effortless integration into tight spaces, making it the perfect choice for next-generation robots. Whether in autonomous vehicles, drones, or industrial automation, the IMU X1 Pro delivers high performance without compromising on space or flexibility.
Deterministic real‑time. Secure by design. Flexible at scale.
| Category |
Legacy Protocols (TCP/IP, Modbus, CAN, EtherCAT, PROFINET, RS485) |
Native ROS 2 (DDS‑Based) |
|---|---|---|
| Real‑Time Performance | Hard‑coded / limited guarantees | Software‑defined, deterministic |
| Security | Basic or none | Built‑in encryption & secure nodes |
| Latency | 10–100 ms (stack overhead) | <10000 µs (optimized DDS transport) |
| ROS Compatibility | Requires external wrappers | Native integration, zero overhead |
| Bandwidth | 1–100 Mbit/s | 0.5 to 2.5 Gigabit |
| OTA Update Support | Rare / unsupported | Fully supported |
| Protocol Flexibility | Rigid (Master/Slave, Producer/Consumer) | Peer‑to‑Peer / Publish‑Subscribe / Hybrid |
| Quality of Service (QoS) | Fixed or hard‑coded | Configurable per topic |
| Advanced Data Handling | Basic signal data only | Fused, time‑synced, intelligent streams |
| Interoperability | Vendor‑specific / locked | Open, hardware‑agnostic |
| Middleware Stack | Proprietary or layered | DDS‑based, community‑supported |
| OSI Layer Coverage | Partial (1,2,7) | Full stack (1–7) |
From drones to air taxis, deliver stable flight, accurate navigation, and real-time orientation feedback in GNSS-denied environments.
Precision sensing for AMRs, AGVs, inspection robots, and autonomous cars — enabling drift-free navigation and robust SLAM integration.
Reliable orientation, heave, and motion tracking for surface and underwater vehicles operating in harsh and GPS-limited conditions.
Reliable orientation, heave, and motion tracking for surface and underwater vehicles operating in harsh and GPS-limited conditions.

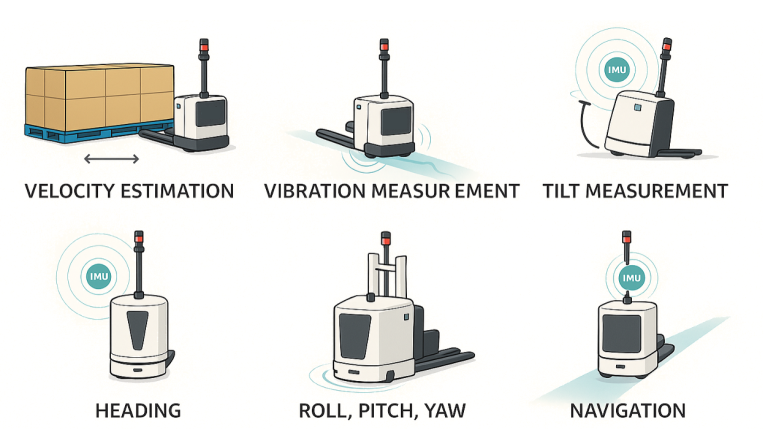

Accurate real-time motion data for robotic arms, logistics platforms, indoor service robots, and factory automation systems.
Accurate real-time motion data for robotic arms, logistics platforms, indoor service robots, and factory automation systems.
Low-drift, high-frequency motion tracking for biomechanics, AR/VR, sports performance analysis, and motion capture systems.
Low-drift, high-frequency motion tracking for biomechanics, AR/VR, sports performance analysis, and motion capture systems.
Rugged and reliable sensing for autonomous farming, precision agriculture, and outdoor inspection in challenging environments.
Rugged and reliable sensing for autonomous farming, precision agriculture, and outdoor inspection in challenging environments.
The X1 Ultra integrates an embedded AI processor with a fully redundant penta-MEMS sensor architecture, enabling real-time signal classification, drift correction, and motion analysis—directly at the edge. It’s not just a sensor; it’s a smart sensing platform.
Yes. The X1 Ultra comes with native ROS 2 support. All sensor outputs are published as standard ROS messages, eliminating the need for drivers or converters. Plug-and-play via Ethernet interface.
The X1 Ultra delivers raw and AI-fused sensor data at up to 1000 Hz, including accelerometer, gyroscope, magnetometer, and absolute orientation in quaternion. It also provides temperature measurement, sensor status, and gravity compensated acceleration, as well as the relative velocity.
The olixSense™ X1 Ultra features dynamic self-calibration and continuous sensor bias and distortion compensation. No manual recalibration is needed—even in changing environments.
However, you can always call the ROS 2 Service for onboard calibration and bias calculation, as well as resetting the offset angles for your application.
Absolutely. The X1 features an intuitive WebGUI with live data visualization, integrated terminal, OTA firmware updates, and advanced settings—all accessible over IP/Ethernet-over-USB. You can also see all configurations as a ROS parameter in your master computer.
Thanks to its aluminum enclosure and wide operating range (-20°C to +50°C), the X1 is ideal for agriculture, robotics, industrial automation, and mobile systems—especially where attitude and heading estimation is required. The X1 Ultra is not IP related casing, this means you can use out-of-the shelves box to keep it from humidity and other environmental effects. We have designed the X1 Ultra to be small, that can be integrated inside the robotics systems, while reducing the cost of the products to meet the customers demand for high precision sensing.
Dive deep into setup guides, SDK references, ROS 2 messages and integration, and best practices — designed to help you unlock the full potential of the olixSense™ X1 Pro.
Whether you’re building autonomous robots, precision navigation systems, or advanced research platforms, our sensors deliver the reliability, precision, and interoperability you need to scale. Talk to our team of engineers/sales and get tailored solution for your robot today.
